ES-IV SERIES

1. HIGH-SPEED

The Full Cycle and extraction cycle are significantly shortened after upgrading to ES-IV. Not only can meet the common needs as before, but also can correspond to high-speed and high-precision requirements of customers.

2. HIGH-PERFORMANCE

On the basis of STEC-NC2, the performace is greatly improved and a wide variety of setting can made. The FULL CNC programming fuction is also convenient, making it easier to program and set that before.

3. HIGH-PRECISION

The amplitude control of the posture unit is very effective for insert molding which requires high-presicion extraction. STAR can be guaranteed in speed and precision, so customer can assured to use it.

4. HIGH-EFFICENCY

Through the production management and maintenance function, customers can real-time control the production status and improve operation rate. Prompt customer maintenance regularly to prolong the service life of the production information is displayed on the main screen for customers to machines.real-time view the machine status. Unified layout of keyboard to reduce customers operation

The top-entry robots of the ES-IV series are particularly appreciated for their excellent value for money

Thanks to the high number of standard functions (operative modes), which allow for the creation of very complex sequences, even the less experienced operator can use these robots without any risk. The “free programming” function allows you to program your own cycle. Programming can be done directly from the touch screen pendant or from your laptop.

Rigidity and precision

All of the ES-IV robots are equipped with high-quality prismatic guide with special recirculating ball bearings; the drive to the axes is performed by brushless motors, which convey the movement by means of toothed belts; these factors guarantee a precision positioning of ± 0.1 mm.

The electro-welded steel structure of the three axes ensures high rigidity, which facilitates precision and reduces vibrations to the minimum.

CONTROLLER: STEC NC2

It allows to safely operate the robot, reducing errors to a minimum.

Don’t forget the end-of-arm tooling!

The most innovative Japanese technology is at the base of our Eins range, a line of products dedicated to the components for end-of-arm toolings. All Eins products are totally compatible with other brands and can also be used on robots made by other manufacturers, to get the best flexibility of use.

Available versions:

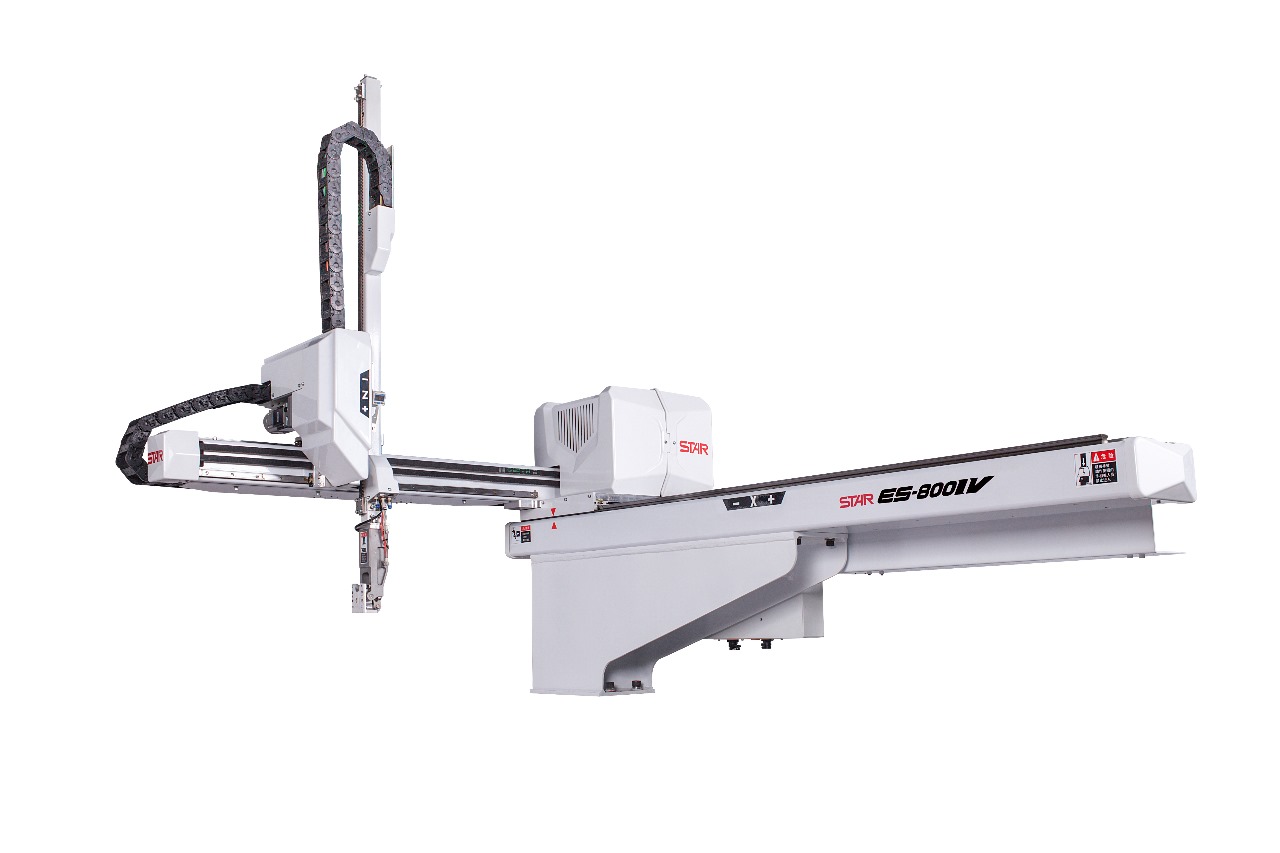

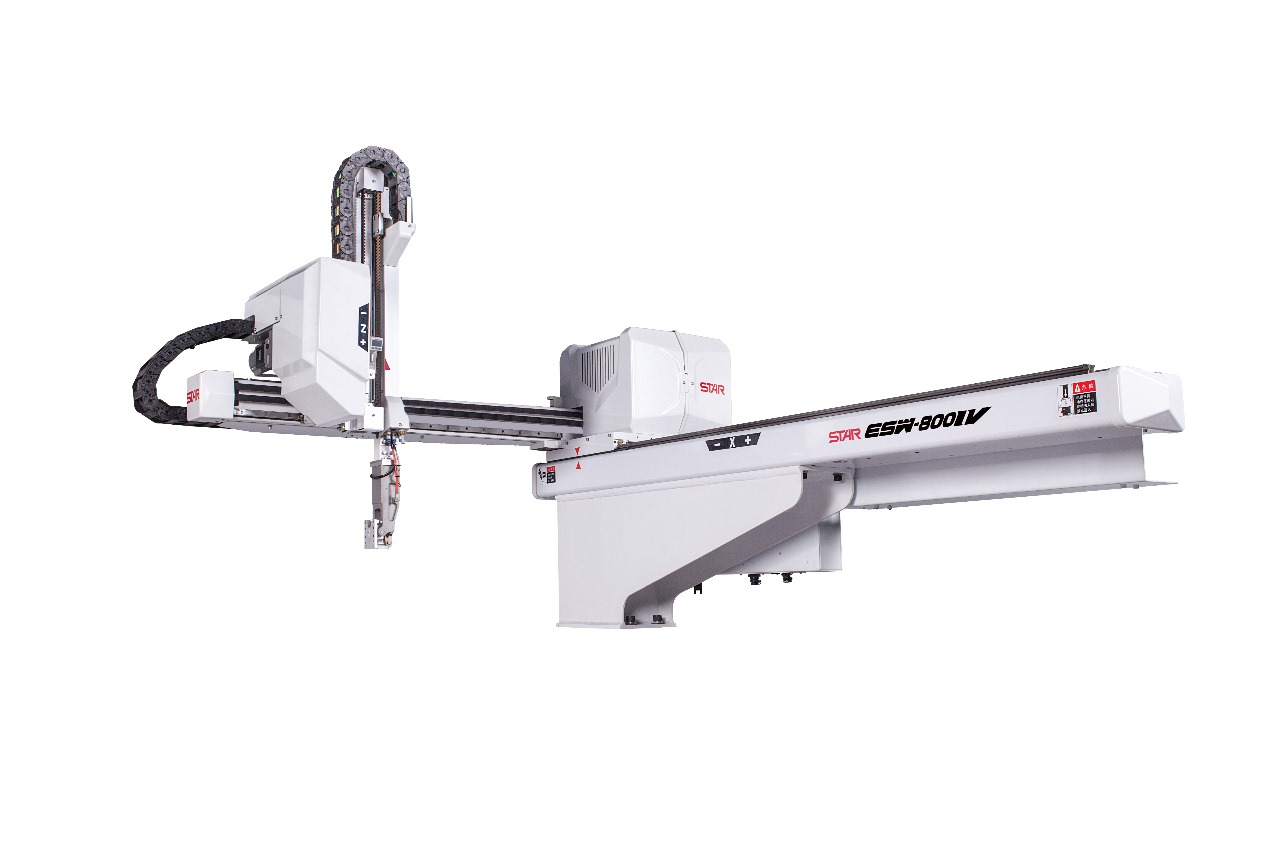

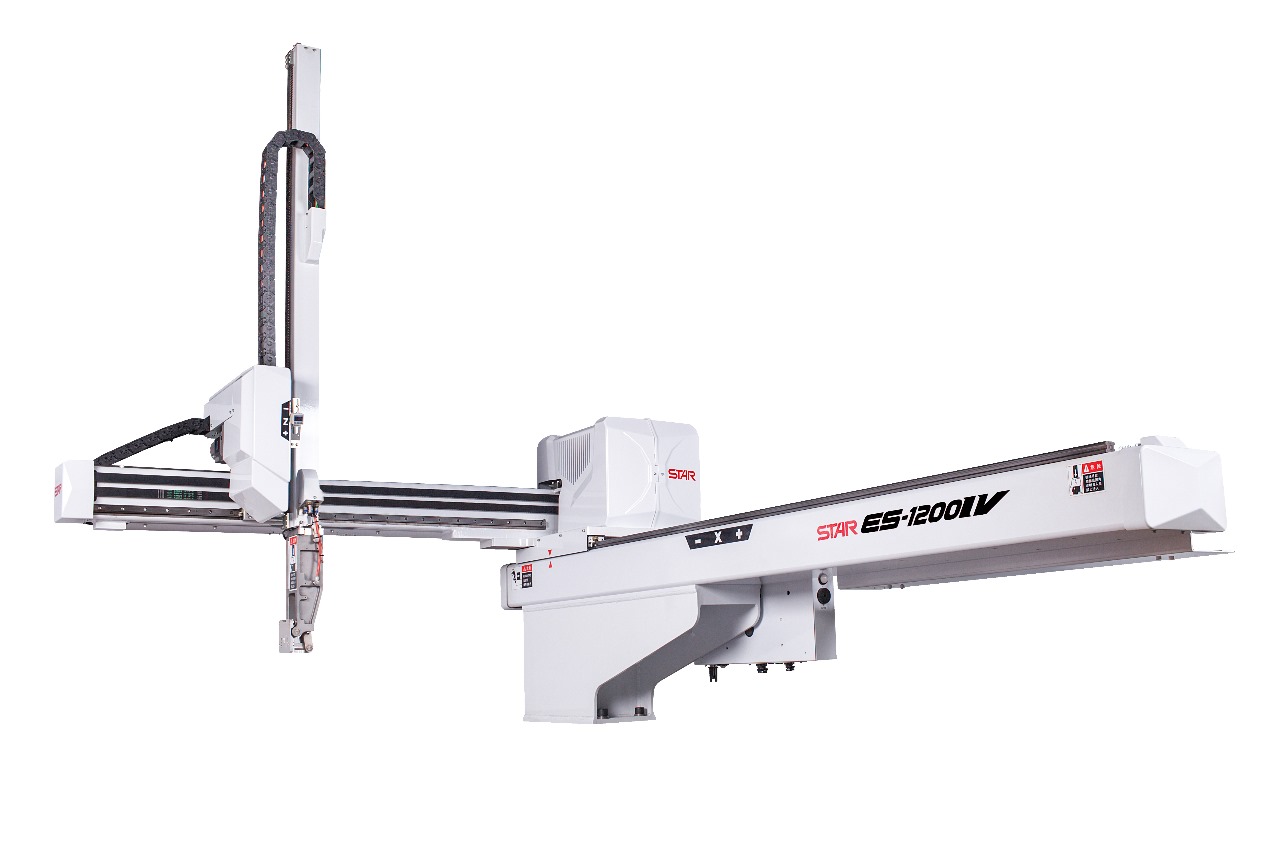

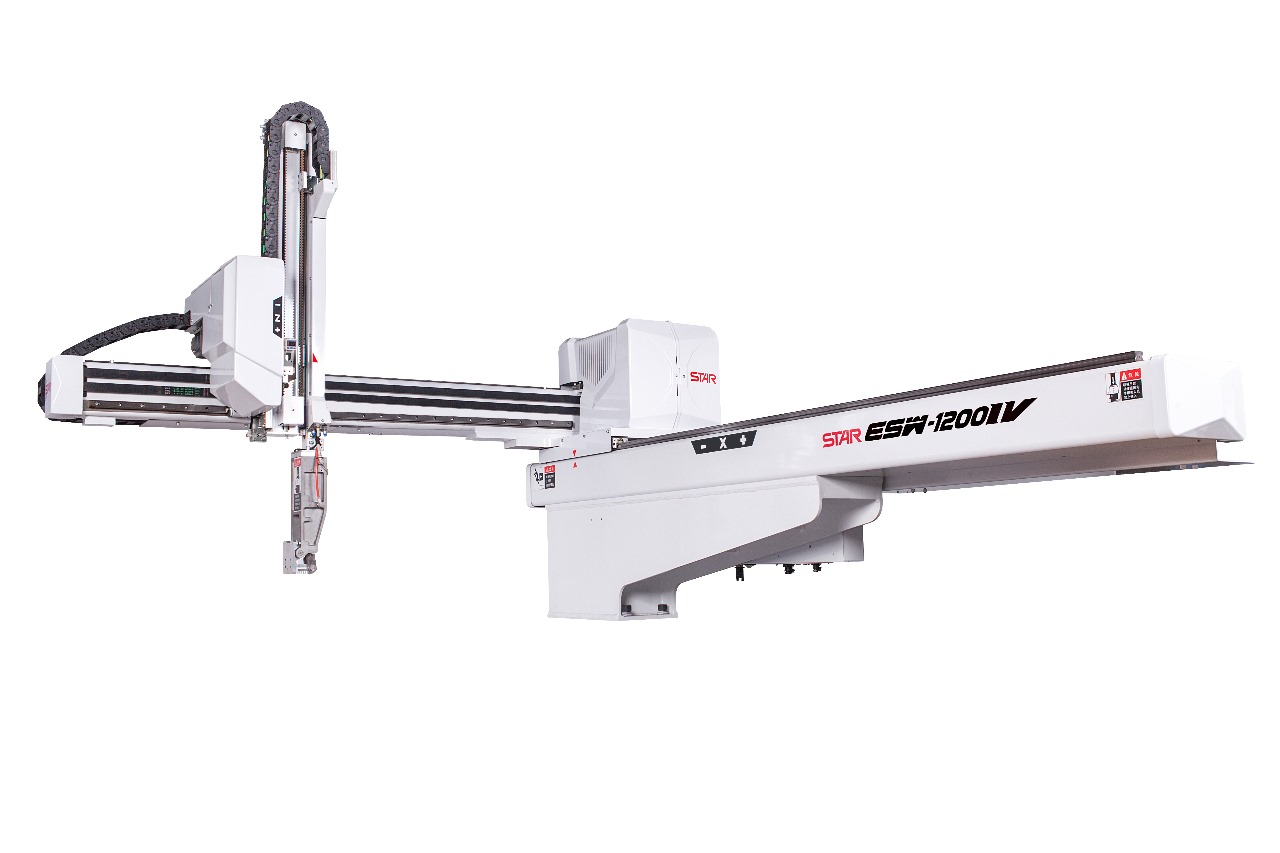

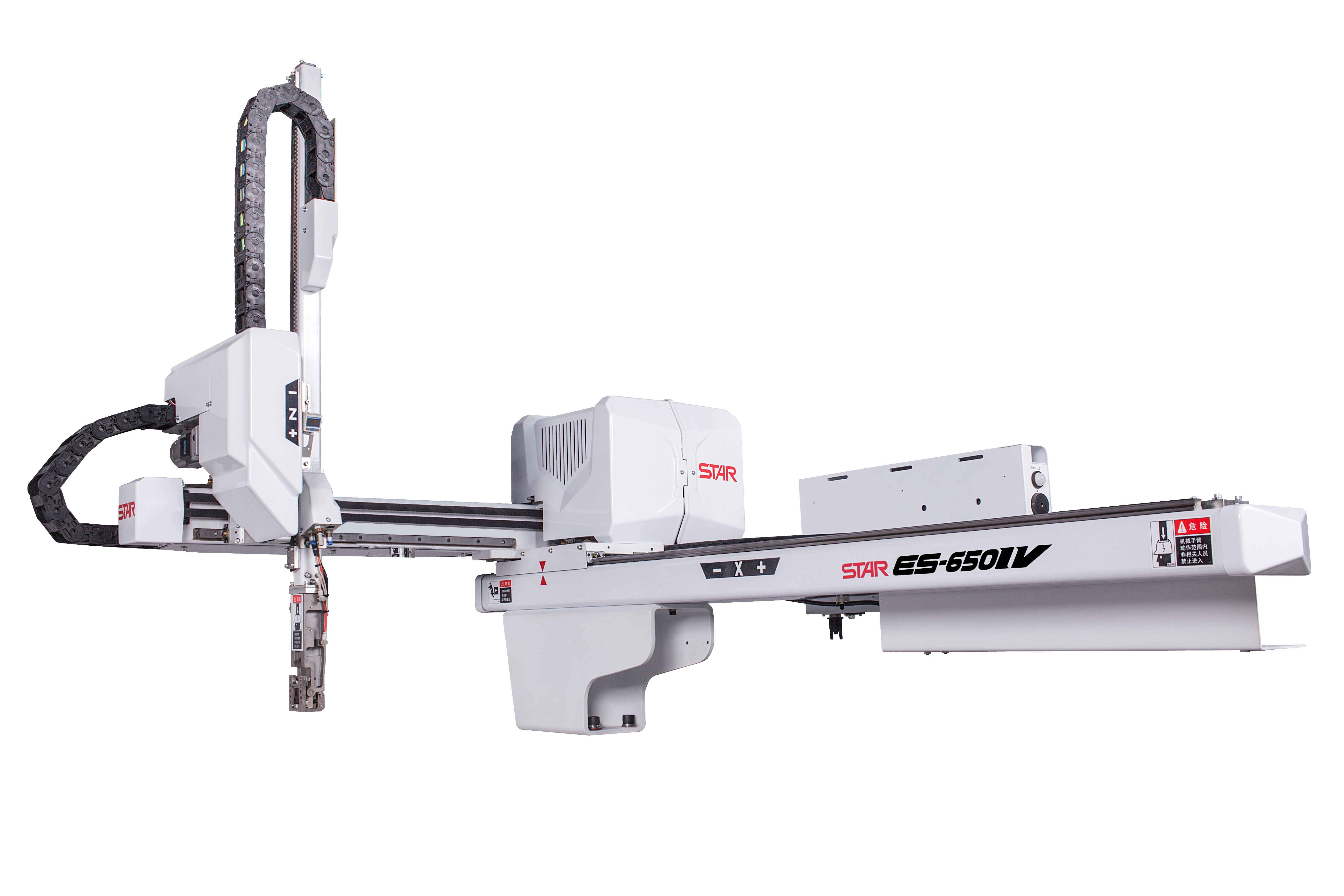

ES-IV
3-axes robot

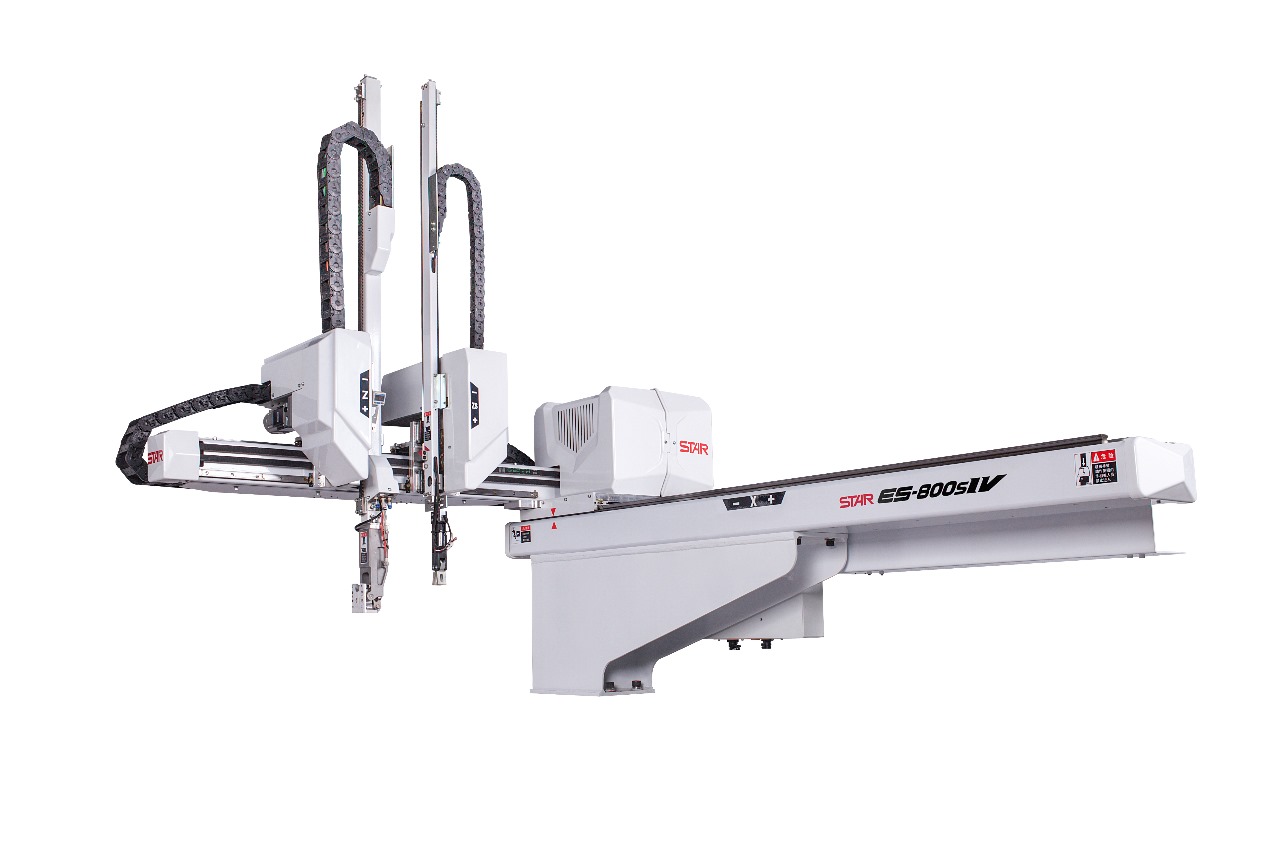

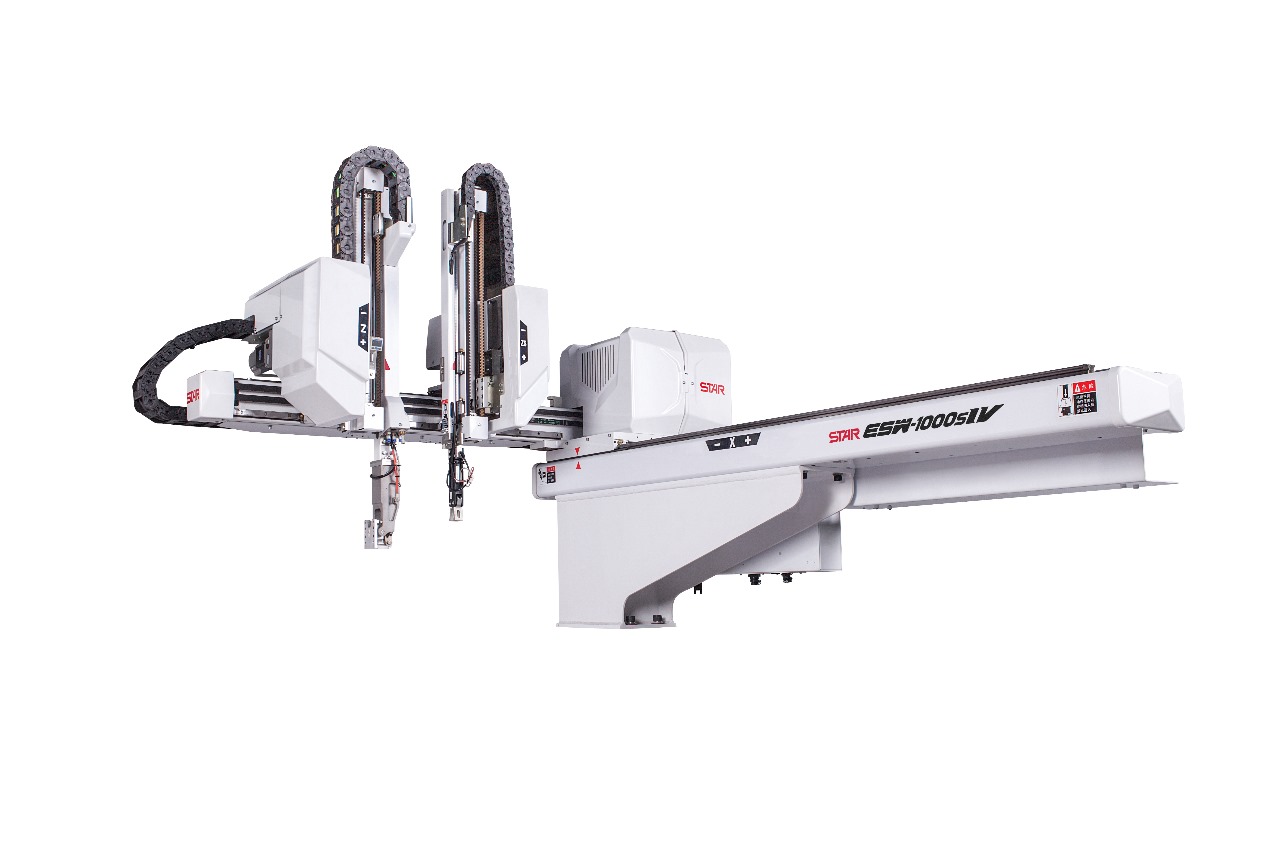

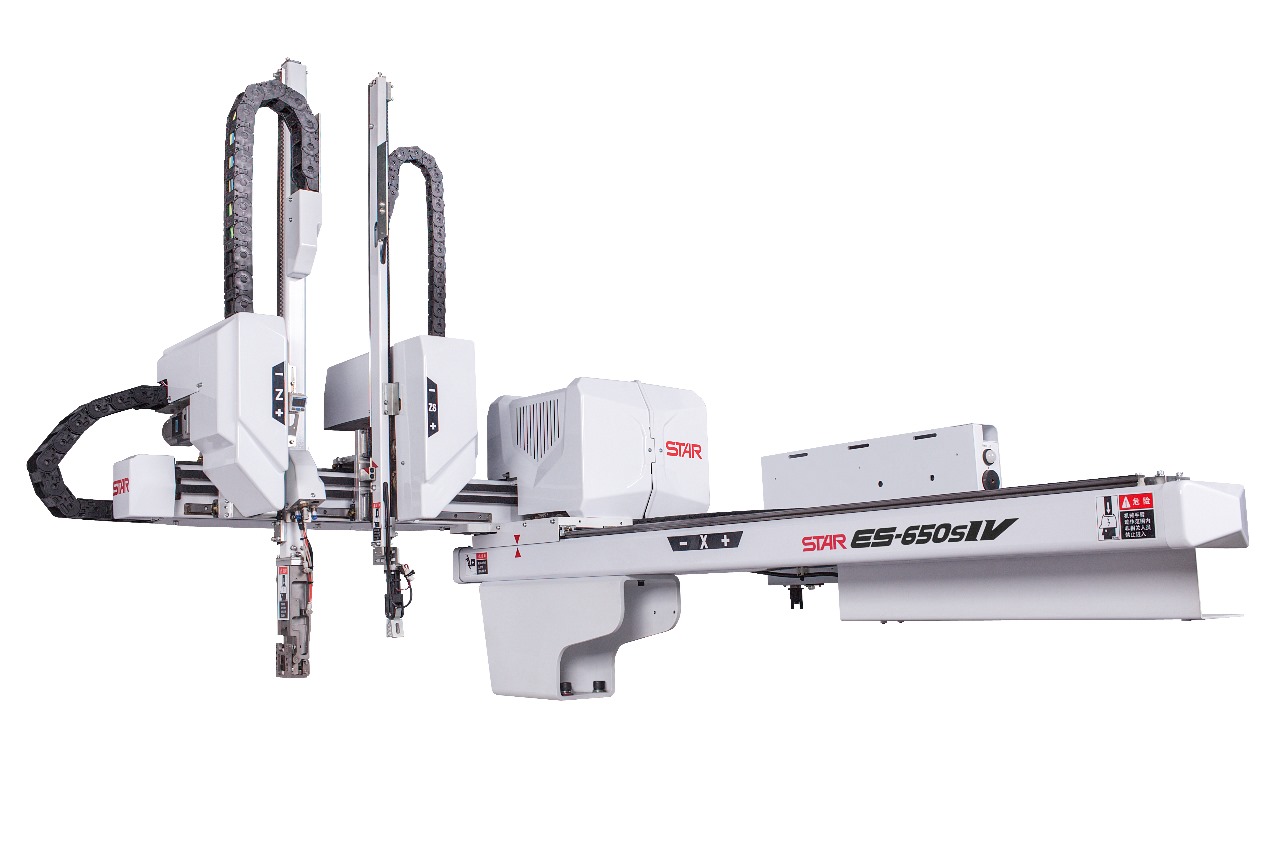

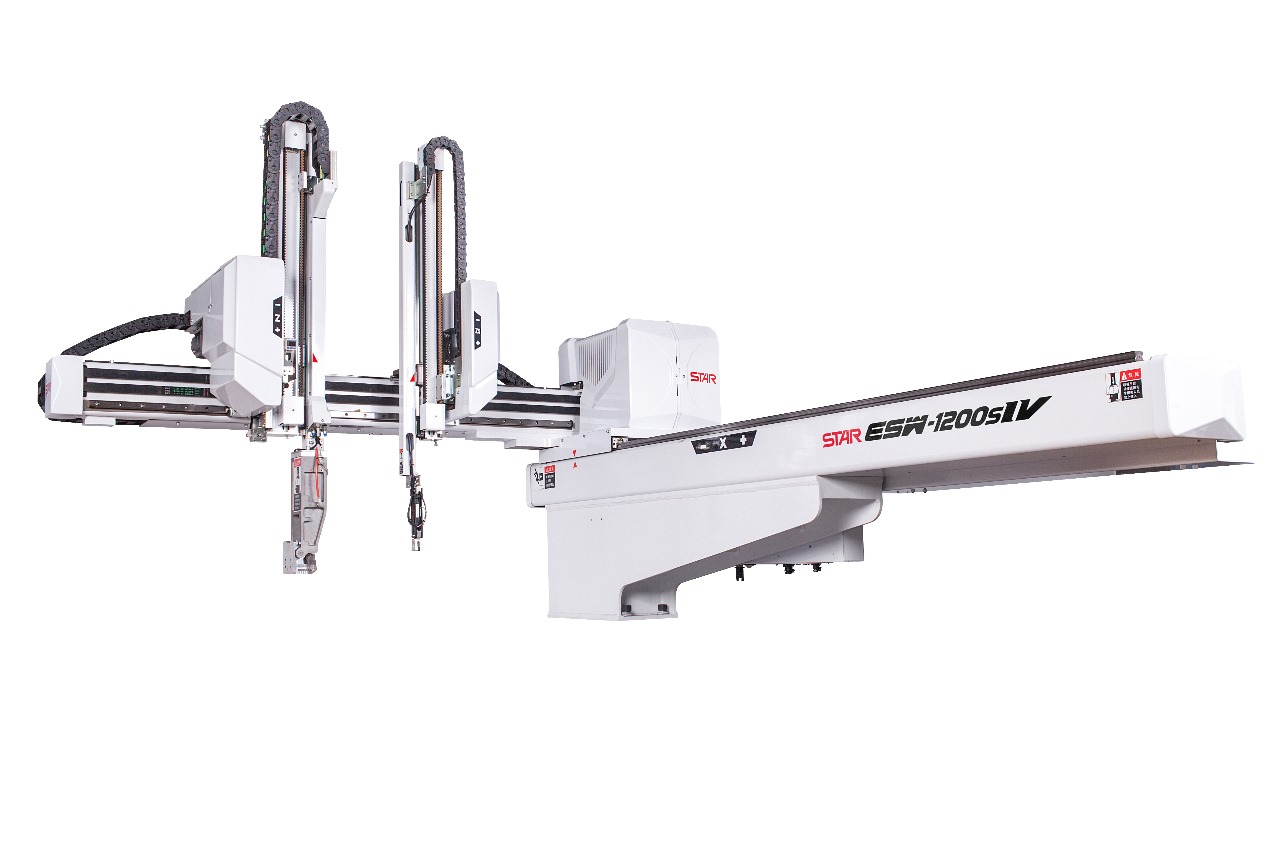

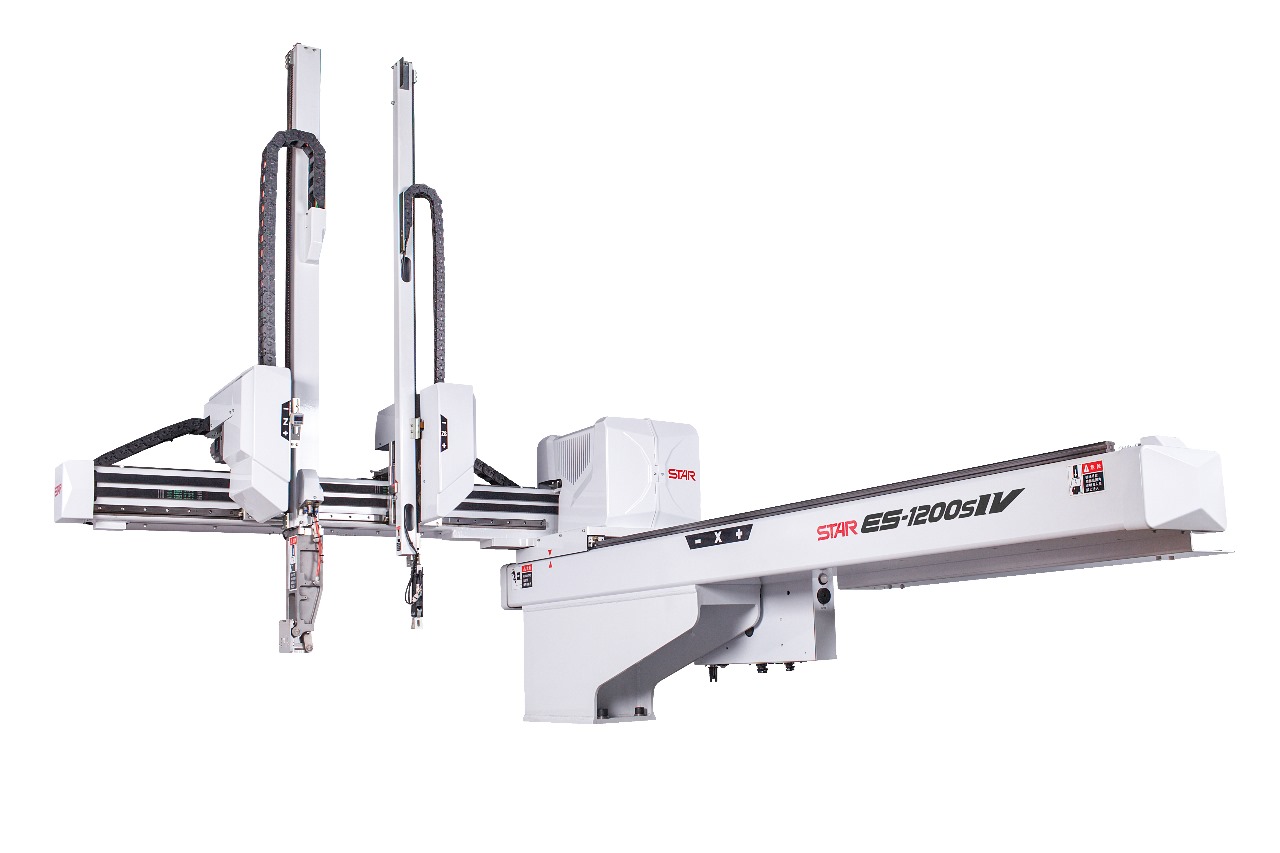

ES-s IV
5-axes robot with additional vertical axis for the extraction of sprues from three-platen moulds.
