High-speed robots – ZXW-VI series

These top-entry robots are the ideal solution for extremely fast production cycles.

They can achieve take-out times lower than one second and, as a consequence, the reduction in the open-mould times is impressive. For this reason, they can satisfy even the most demanding user.

Simply fast

Thanks to their speed, the robots of the ZXW-VI series are mainly recommended for food packaging systems, IML applications and whenever fast and accurate handling is required

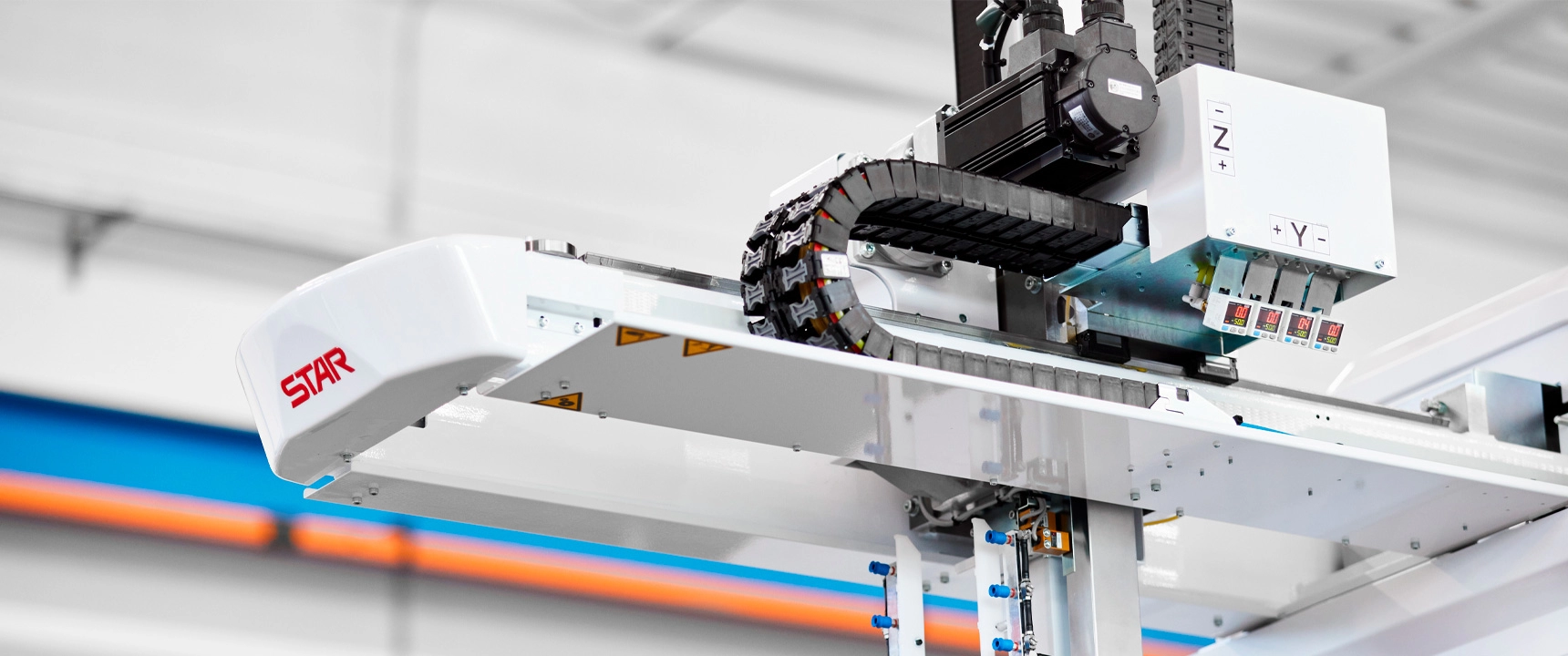

The robots of the ZXW-VI series are equipped with prismatic guide with special recirculating ball bearings; the drive to the axes is performed by brushless motors which convey the movement by means of toothed belts; these factors guarantee a precision positioning of ± 0.1mm.

The height of the robot is reduced, thanks the to its telescopic vertical arm. All these features make this robot very fast.

  • svg

    Process Initiation

    We start with an initial review and analyzation of your business process to evaluate the level of automation needed and determining how it can be deployed.

  • svg

    Process Designing

    Upon evaluation, a design for implementing the process is prepared documenting the complete procedure to be followed and the automation solution is engineered.

  • svg

    Process Implementation and Testing

    The designed and engineered robotic process automation solution implemented and thoroughly tested to check its efficiency for performing the operations.

  • svg

    Process Monitoring

    The automation solution is continuously monitored and analyzed as per the results of testing to further plan out on the areas of improvement for the solution.

CONTROLLER: STEC 520A. Major energy saving

With our Eco mode you can save up to the 25% of power consumption, thanks the temporary stopping of the servo motor and the turning off of the pendant background light.

The automatic interruption of air supply to the vacuum generator allows to save on air consumption when extracting the product. And there is more: speed and acceleration of the robot are automatically adjusted by conforming the operation cycle to the moulding time, ensuring energy saving and noise and wear reduction.

Don’t forget the end-of-arm tooling!

The components for end-of-arm-toolings of our Eins range have been developed following the most innovative Japanese technology in order to reach the best performance levels. As they can be used both on six-axes and Cartesian robots made by other manufacturers too, they can guarantee the highest flexibility of use.

Available versions:

ZXW-VI

3-axes robot

ZXW-VI 2V

5-axes robot with double vertical axis for the extraction of products from stack moulds

ZXW-VI H

Longitudinal robot releasing the parts at the end of the IMM, reducing thus the overall occupied volume

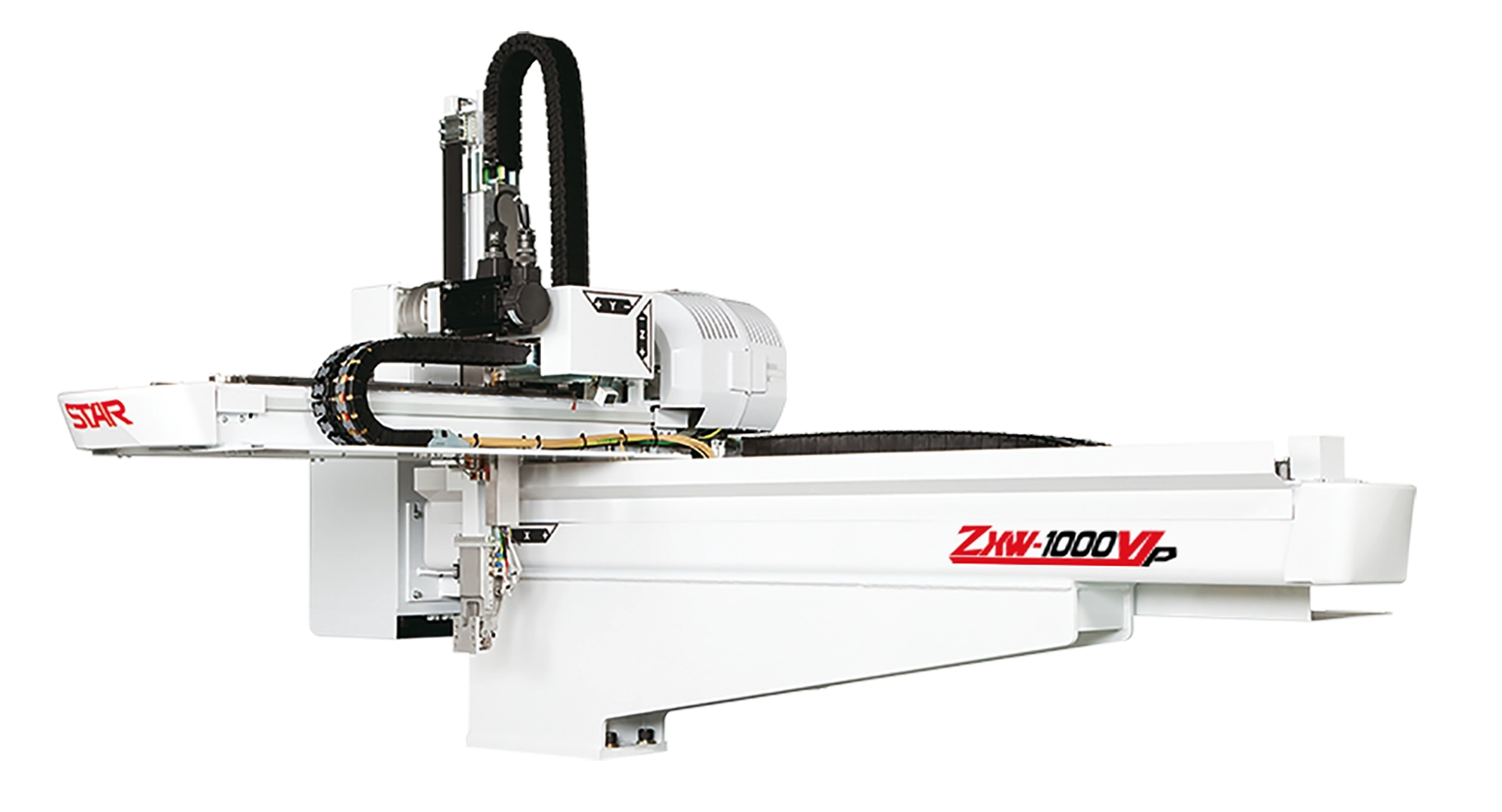

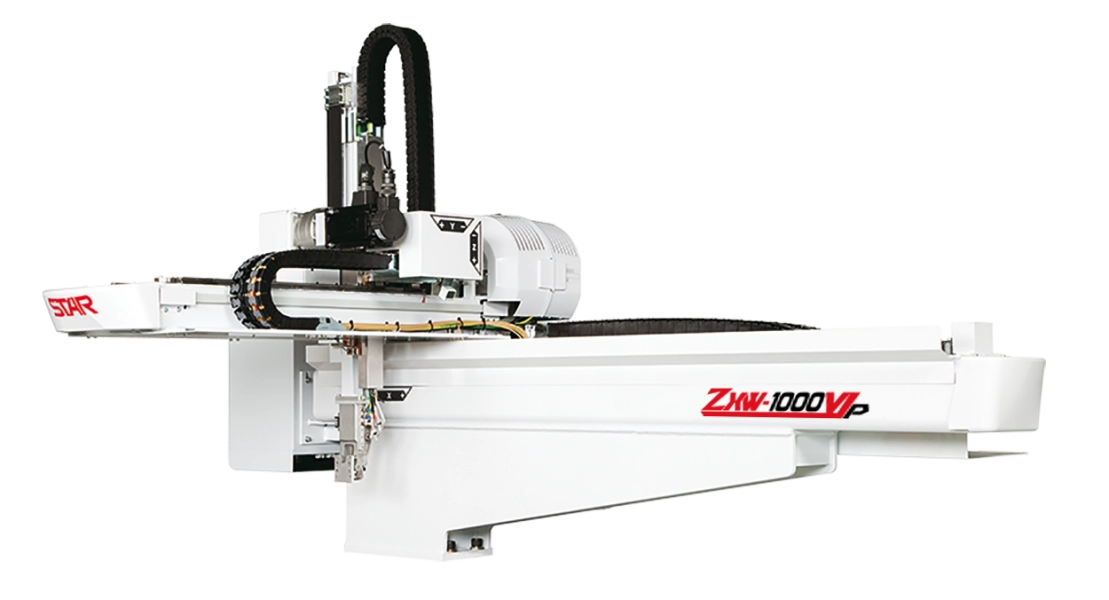

ZXW-1000VIP

For any further information, download the datasheet of the different available models.

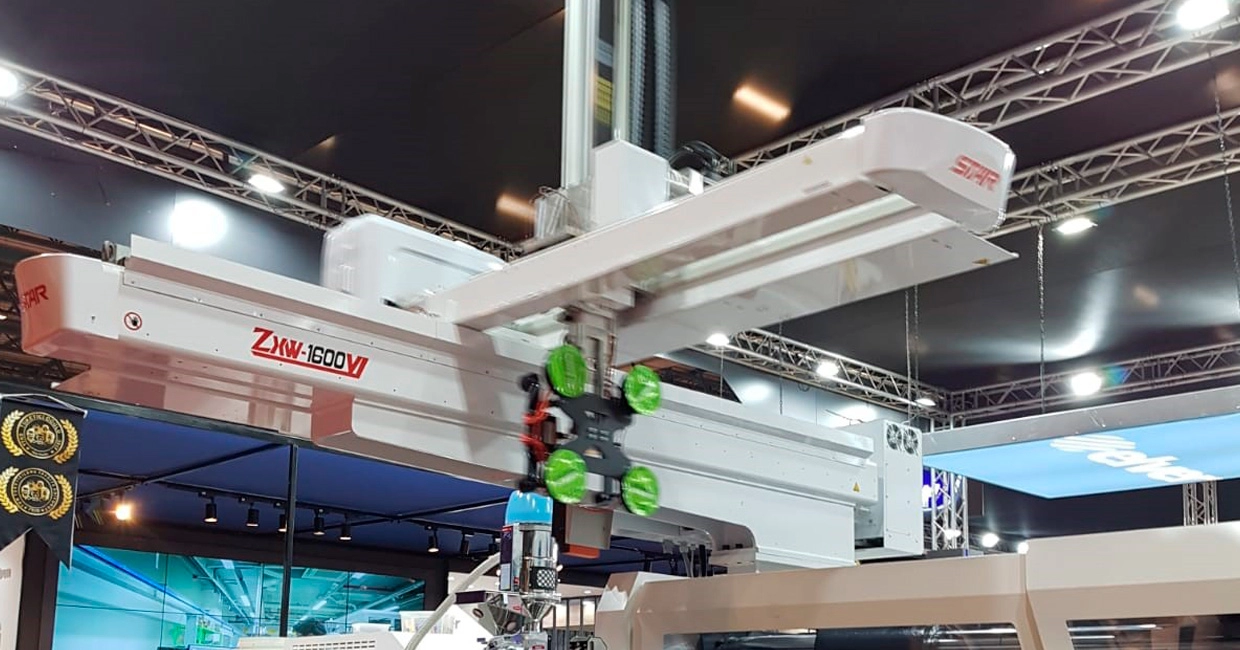

ZXW-1600VI

For any further information, download the datasheet of the different available models.
